Description

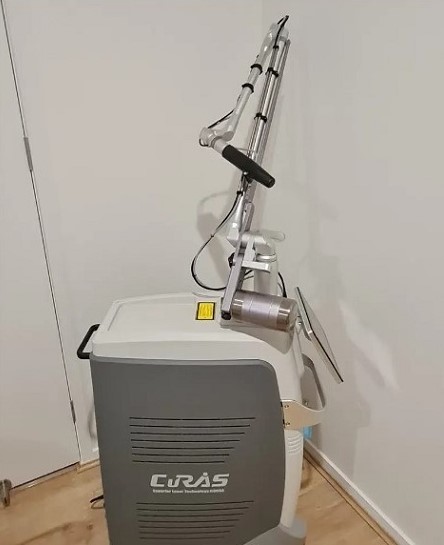

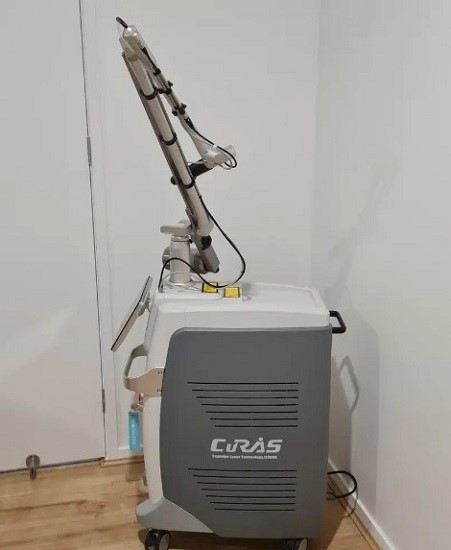

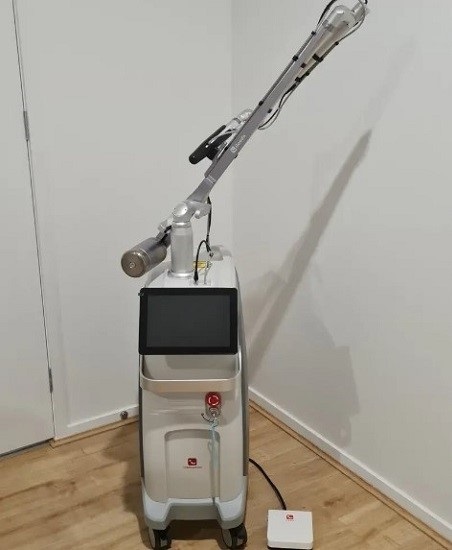

Ilooda Curas Nd:YAG Laser
The Ilooda Curas Nd:YAG Laser is an advanced, high-performance laser platform designed for a wide range of aesthetic and dermatological treatments. Developed by Ilooda, this system utilizes long-pulsed Nd:YAG (1064 nm) laser technology to deliver safe, effective, and versatile solutions for skin rejuvenation, vascular lesions, and hair reduction across all skin types.
Advanced Nd:YAG Laser Technology
The Curas system operates at a wavelength of 1064 nm, allowing deep penetration into the dermis while minimizing epidermal damage. This makes it especially suitable for treating darker skin tones and targeting deeper structures such as hair follicles and blood vessels. The laser energy is selectively absorbed by hemoglobin and melanin, enabling precise treatment of vascular conditions and unwanted hair while preserving surrounding tissue.
Versatile Clinical Applications
The Ilooda Curas Nd:YAG Laser is engineered to address multiple aesthetic concerns with a single platform, making it a valuable addition to modern clinics and dermatology practices. It is commonly used for:
- Permanent hair reduction
- Treatment of vascular lesions (e.g., spider veins, telangiectasia)
- Skin rejuvenation and tightening
- Acne and inflammation reduction
- Pigmented lesion improvement
- Nail fungus (onychomycosis) treatment
High Power & Precision Delivery
Equipped with high peak power and adjustable pulse durations, the Curas system allows practitioners to customize treatments based on patient skin type and condition. Its precision delivery ensures consistent energy distribution, maximizing clinical outcomes while reducing the risk of side effects.
Integrated Cooling System
To enhance patient comfort and safety, the device features an advanced cooling mechanism that protects the epidermis during treatment. This reduces discomfort, minimizes downtime, and allows for higher energy settings when needed, improving overall treatment efficacy.
User-Friendly Interface
The intuitive touchscreen interface simplifies operation, enabling practitioners to easily adjust parameters such as fluence, pulse width, and repetition rate. Pre-set treatment modes further streamline workflow and ensure consistent results across different procedures.
Key Benefits
- Deep-penetrating 1064 nm Nd:YAG laser technology
- Safe for all skin types, including darker tones
- Multi-functional platform for various aesthetic treatments
- High precision and customizable settings
- Integrated cooling for enhanced comfort
- Minimal downtime and fast recovery
The Ilooda Curas Nd:YAG Laser combines power, precision, and versatility in one advanced system. With its ability to safely treat a wide range of skin conditions and deliver consistent results, it is an ideal solution for clinics seeking a reliable, non-invasive laser platform for modern aesthetic treatments.
Specification
General Specifications
- Product Name: Ilooda Curas Nd:YAG Laser
- Manufacturer: Ilooda
- Laser Type: Q-Switched Nd:YAG Laser
- Application: Dermatology & aesthetic treatments
- System Type: Trolley-mounted platform
Laser Parameters
- Wavelength:
- 1064 nm
- 532 nm
- Pulse Energy (Max):
- 1064 nm: up to ~1300 mJ (Q-switched)
- 532 nm: up to ~400 mJ
- Pulse Duration:
- 5–20 ns (Q-switched mode)
- Extended pulse ranges depending on mode
- Repetition Rate:
- Up to 15–30 Hz (mode dependent)
Operating Modes
- Q1064 (standard Q-switched mode)
- PTP1064 (twin pulse mode)
- FR1064 (long pulse mode)
- Multi-pulse modes
- Q532 mode
- Fractional mode
Spot Size & Delivery
- Spot Size Range: 2 – 10 mm (adjustable)
- Fractional Treatment Area: approx. 7 × 7 mm
- Beam Profile: Uniform, high-precision output
- Energy Stability: Real-time monitoring and auto-calibration
Handpieces
- Zoom Handpiece (variable spot size)
- Collimated Handpiece
- Fractional Handpiece
- DOE (Diffractive Optical Element) Handpiece
- Optional Dye Handpieces (585 nm & 650 nm)

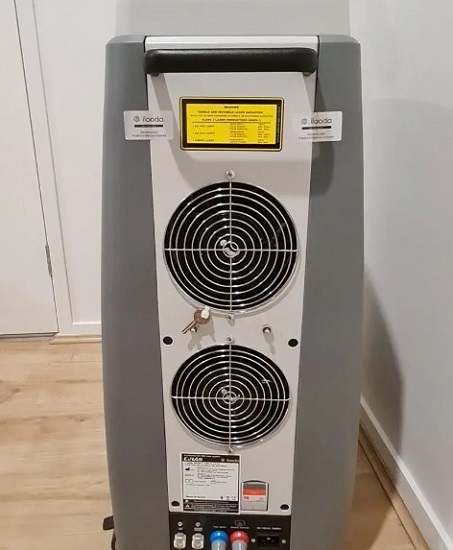

Cooling System
- Integrated closed-cycle water-to-air cooling system
Electrical Requirements
- Input Voltage: 220–230 VAC
- Frequency: 50/60 Hz
Physical Specifications
- Dimensions: Approx. 355 × 672 × 979 mm
- Weight: Approx. 45 – 80 kg (depending on configuration)
Performance Features
- Dual-wavelength technology for multi-layer skin treatment
- High peak power for effective pigment and tattoo removal
- Stable energy output with uniform beam distribution
- User-friendly interface with adjustable parameters
- Multi-functional platform for various dermatological indications
Clinical Applications
- Tattoo removal (multi-color)
- Pigmented lesions (melasma, freckles)
- Skin toning and rejuvenation
- Carbon peeling procedures
- Acne and pore treatment
- Hair bleaching
- Nail fungus (onychomycosis) treatment
The Ilooda Curas Nd:YAG Laser is a powerful and versatile dual-wavelength laser system designed for precision dermatology treatments. With multiple operating modes, customizable parameters, and advanced delivery systems, it provides safe, effective, and consistent results across a wide range of aesthetic applications.
