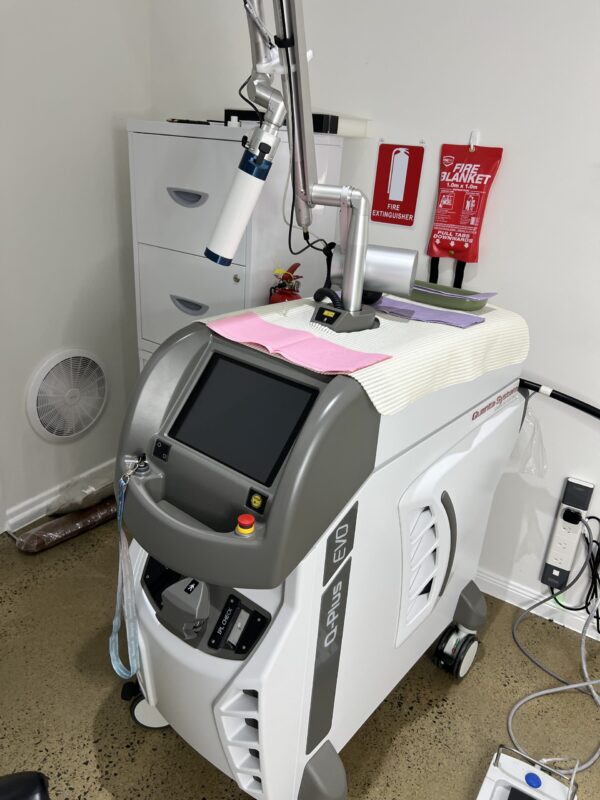

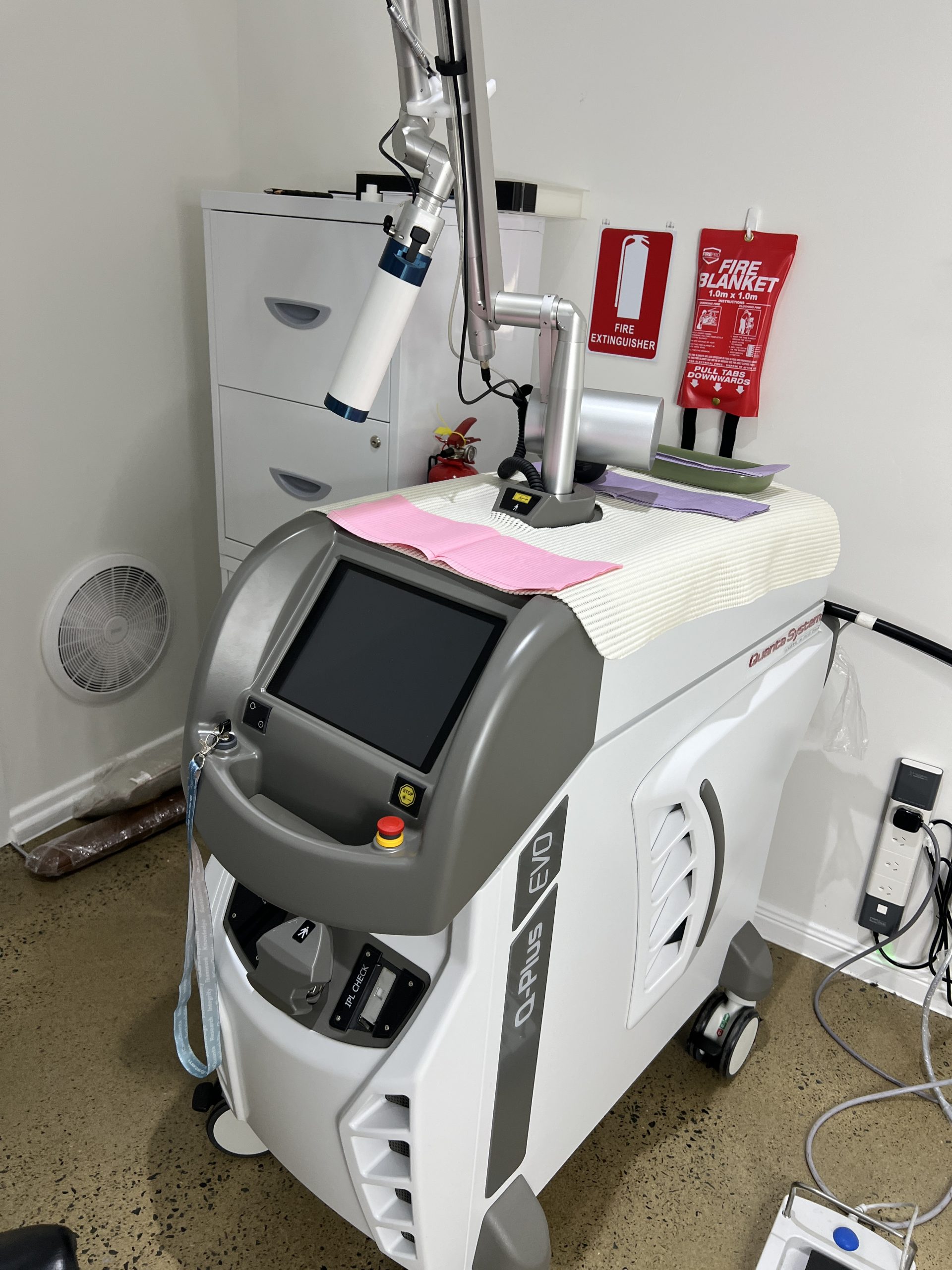

Quanta Q Plus Evo Series

The Quanta Q Plus is an advanced and versatile Q-switched laser platform designed to address a wide range of dermatological and aesthetic applications with precision and safety. Engineered in Italy, this series is trusted worldwide for its ability to combine Quanta Q Plus Q-switched, pulsed, and optional fractional handpieces into one comprehensive solution, offering both power and flexibility for practitioners.

Featuring Quanta Q Plus multiple laser sources – Nd:YAG 1064 nm, Nd:YAG 532 nm, and Alexandrite 755 nm (depending on model configuration). the Quanta Q Plus enables practitioners to treat various indications including tattoo removal (all ink colors), pigmented lesions, vascular lesions, skin rejuvenation, and acne scars. Its powerful Quanta Q Plus technology delivers ultra-short pulses to shatter pigment particles and ink while preserving surrounding skin, ensuring effective results with minimal downtime.

Key Features

• Multi-Wavelength Platform – Nd:YAG 1064 nm, Nd:YAG 532 nm, and optional Alexandrite 755 nm for comprehensive treatment options.

• Quanta Q Plus Technology – delivers ultra-short pulses to effectively fragment tattoo ink and pigmented particles without damaging surrounding tissue.

• Versatile Applications – ideal for tattoo removal (all ink colors), pigmented and vascular lesions, skin rejuvenation, and acne scar improvement.

• OptiBeam II Handpieces – provides flat-top beam profiles for uniform energy delivery, minimizing risk of hot spots and ensuring patient safety.

• Fractional Handpiece Option – enables skin resurfacing, collagen stimulation, and texture improvement.

• Customizable Pulse Durations – offers Q-switched, pulsed, and fractional modes for tailored treatments.

• High Peak Power & Energy Output – ensures faster, more effective sessions with consistent results.

• Integrated Cooling Compatibility – enhances patient comfort and minimizes side effects.

• User-Friendly Interface – intuitive touchscreen with customizable treatment parameters for ease of use.

• Durable Italian Engineering – robust design built for longevity, reliability, and consistent performance.

Benefits

• Comprehensive Treatment Capabilities – effectively addresses tattoos of all colors, pigmented and vascular lesions, and skin rejuvenation in a single platform.

• Safe for All Skin Types – advanced wavelength options and beam uniformity ensure safe, precise treatments even on darker phototypes.

• Fast and Effective Results – high peak power and customizable settings deliver quicker sessions with fewer treatments required.

• Improved Patient Comfort – integrated cooling compatibility and advanced handpiece design minimize discomfort and downtime.

• Enhanced Skin Quality – fractional handpiece option stimulates collagen, reduces scars, and improves overall skin texture.

• High Return on Investment – multi-application versatility allows clinics to expand treatment offerings without multiple devices.

• Reliable Performance – engineered in Italy with durable components for long-term use and consistent outcomes.

• User-Friendly Operation – intuitive interface simplifies procedures, supporting both new and experienced practitioners.

• Increased Patient Satisfaction – visible, lasting results across a wide range of aesthetic and dermatological concerns.

Indications

• Tattoo Removal – effective for multicolor tattoos, including stubborn inks (black, red, blue, green, yellow).

• Benign Pigmented Lesions – such as lentigines, café-au-lait spots, freckles, nevus of Ota, and age spots.

• Vascular Lesions – including small telangiectasia, superficial vascular marks, and hemangiomas (depending on wavelength).

• Skin Rejuvenation – improvement of tone, texture, and brightness through collagen stimulation.

• Acne & Acne Scarring – reduces active acne and improves the appearance of post-acne marks.

• Melasma & Hyperpigmentation – safe and effective pigment reduction with controlled energy delivery.

• Dermatological Surgery (optional use) – precise targeting of superficial pigmented or vascular conditions.

Application

1. Patient Assessment

   • Conduct a full skin evaluation to identify treatment needs (tattoos, pigmented/vascular lesions, rejuvenation).

   • Determine the appropriate wavelength and pulse duration based on skin type, concern, and treatment area.

2. Preparation

   • Cleanse the treatment area thoroughly and remove any makeup, lotions, or oils.

   • Provide protective eyewear for both patient and practitioner.

   • Apply a topical anesthetic or cooling method if needed for patient comfort.

3. Laser Delivery

   • Select the correct wavelength:

     • 1064 nm Nd:YAG – deep pigmentation, darker tattoos, vascular lesions, darker skin types.

     • 532 nm Nd:YAG – superficial pigmentation, red/orange/yellow tattoo inks, vascular lesions.

     • 755 nm Alexandrite (if available) – resistant pigments such as blue/green inks and certain pigmented lesions.

   • Adjust fluence, spot size, and repetition rate according to treatment protocol.

   • Deliver laser pulses evenly using OptiBeam II handpieces to ensure uniform energy distribution.

4. Treatment Coverage

   • Move systematically across the treatment area to achieve complete coverage while avoiding overlap.

   • For skin rejuvenation or acne scars, use the fractional handpiece option to stimulate collagen and remodel skin texture.

5. Post-Treatment Care

   • Apply soothing gels or cooling packs immediately after the procedure.

   • Advise patients on post-care instructions: avoid sun exposure, use high SPF sunscreen, and follow hydration protocols.

   • Schedule follow-up treatments as needed depending on indication (tattoo removal may require multiple sessions).

6. Treatment Plan

   • Tattoo Removal: 6–10 sessions, spaced 6–8 weeks apart.

   • Pigmented Lesions: 2–5 sessions, depending on severity and type.

   • Skin Rejuvenation / Acne Scars: 3–6 sessions at 4–6 week intervals.
