Description

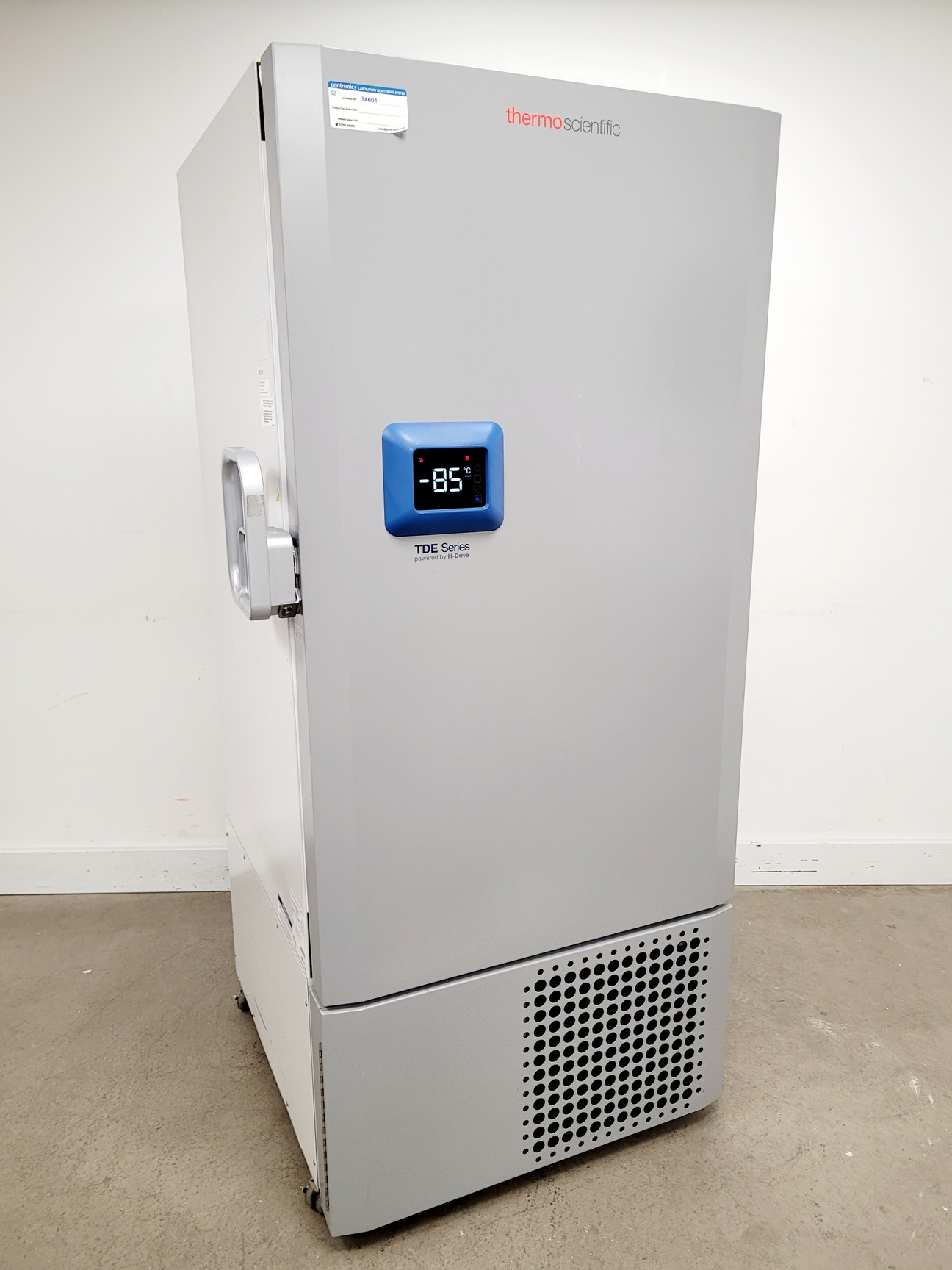

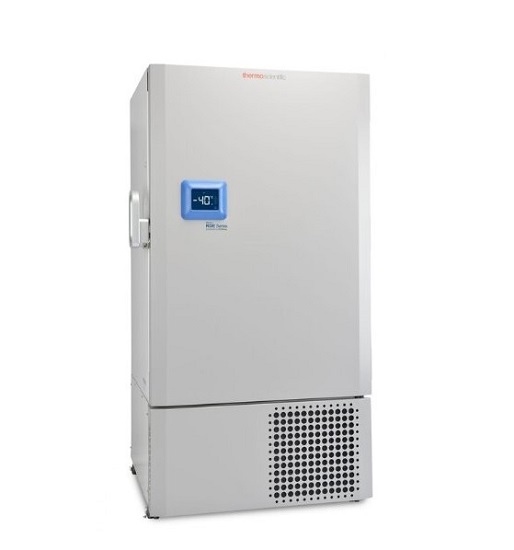

TDE60086FV Ultra-Low Temperature Freezer
The Thermo Scientific TDE60086FV Ultra-Low Temperature Freezer is a high-performance laboratory freezer designed to provide reliable and energy-efficient storage for sensitive biological materials at ultra-low temperatures. Engineered by Thermo Fisher Scientific, this upright ULT freezer offers advanced cooling technology, superior temperature stability, and large storage capacity to meet the demanding requirements of modern research laboratories, biobanks, pharmaceutical facilities, and clinical institutions.
Designed for the secure preservation of valuable samples, the TDE60086FV maintains stable temperatures ranging from -50°C to -86°C, ensuring optimal conditions for long-term storage of biological materials such as DNA, RNA, vaccines, cell cultures, plasma, enzymes, and pharmaceutical compounds. The freezer incorporates H-Drive hydrocarbon refrigeration technology, which uses natural refrigerants to deliver high cooling efficiency while significantly reducing energy consumption and environmental impact compared with traditional refrigeration systems.
With a large 816-liter storage capacity, the freezer can accommodate up to 60,000 standard 2 mL vials or 600 storage boxes, making it suitable for laboratories that require high-volume sample storage. The internal chamber is designed with multiple adjustable shelves and four insulated inner doors, helping minimize cold air loss when accessing samples and maintaining consistent temperature uniformity throughout the cabinet.
The freezer features a robust and durable construction with high-performance insulation, including vacuum insulation panels and polyurethane foam, which help maintain stable internal conditions even during frequent door openings. Its advanced cascade refrigeration system ensures rapid temperature recovery and dependable cooling performance, protecting valuable samples from temperature fluctuations.
For convenient operation and monitoring, the system includes a 5.6-inch H-Drive Information Center display with capacitive touch controls, allowing users to easily monitor temperature conditions, adjust parameters, and manage alarm settings. Integrated monitoring capabilities support connectivity with external laboratory monitoring systems through RS485 communication, 4–20 mA outputs, and dry contact alarms, enabling remote supervision and enhanced laboratory safety.
The Thermo Scientific TDE60086FV Ultra-Low Temperature Freezer is also designed with laboratory comfort and sustainability in mind. Its efficient compressor system operates with reduced noise levels, making it suitable for placement directly in laboratory environments. The use of environmentally friendly hydrocarbon refrigerants further supports sustainable laboratory operations while maintaining exceptional cooling performance.
Combining large storage capacity, advanced refrigeration technology, and reliable sample protection, the TDE60086FV Ultra-Low Temperature Freezer provides laboratories with a dependable solution for secure ultra-low temperature storage. Its durable design, energy efficiency, and advanced monitoring capabilities make it an ideal choice for facilities that require consistent, long-term preservation of critical research and clinical samples.
Key Features
-
Ultra-Low Temperature Performance (-50 °C to -86 °C)
Designed for secure long-term storage of sensitive biological samples such as DNA, RNA, proteins, vaccines, and laboratory reagents. -
Large 816 L Storage Capacity
Provides space for up to 600 standard 2-inch storage boxes or approximately 60,000 × 2 mL vials, making it ideal for high-capacity laboratories and biobanks. -
H-Drive Hydrocarbon Refrigeration Technology
Advanced compressor system designed to deliver reliable ultra-low temperatures while reducing energy consumption by up to 25% compared with conventional ULT freezers. -
Fast Temperature Recovery
Recovers cabinet temperature up to 20% faster after door openings, helping maintain stable storage conditions and protecting valuable samples. -
Quiet Operation (<53 dBA)
Low noise output allows the freezer to be placed directly inside laboratories without disturbing the work environment. -
Advanced Sample Protection
Stable temperature performance with low peak variation helps ensure consistent storage conditions for sensitive research materials. -
User-Friendly Control Interface
Includes the H-Drive Information Center (HIC) with a 5.6-inch display and capacitive touch controls for easy monitoring and parameter adjustments. -
Four Inner Doors for Temperature Stability
Internal compartment doors reduce cold air loss when accessing samples, helping maintain internal temperature uniformity. -
Advanced Monitoring and Connectivity
Supports external monitoring systems with interfaces such as 4–20 mA, RS485, and dry contacts, allowing integration with laboratory monitoring systems. -
Sustainable Refrigerant System
Uses natural hydrocarbon refrigerants (R290 and R170) to improve efficiency and reduce environmental impact.
Specifications
General
-
Product Type: Ultra-Low Temperature (ULT) Freezer
-
Configuration: Upright Freezer
-
Manufacturer: Thermo Fisher Scientific
-
Series: Thermo Scientific TDE Series
-
Application: Long-term storage of biological samples, vaccines, DNA/RNA, plasma, and laboratory reagents
Temperature Performance
-
Temperature Range: -50°C to -86°C
-
Temperature Uniformity: Optimized for stable storage conditions
-
Warm-up Time (-80°C to -50°C): Approximately 352 minutes
Storage Capacity
-
Total Capacity: 816 Liters (28.8 cu. ft.)
-
Maximum Vial Capacity: Up to 60,000 × 2 mL vials
-
Storage Box Capacity: 600 standard 2-inch boxes
-
Number of Shelves: 3 adjustable shelves
-
Rack Capacity: 12–24 racks depending on configuration
Dimensions
-
Exterior Dimensions (D × W × H): 97.7 × 100.6 × 198.1 cm
-
Interior Dimensions (D × W × H): 71.9 × 87.3 × 130.1 cm
Weight
-
Net Weight: 322 kg
-
Shipping Weight: 372 kg
Refrigeration System
-
Compressor Type: H-Drive hydrocarbon compressor system
-
Refrigerant: R290 and R170 hydrocarbon refrigerants
-
Cooling System: Cascade refrigeration system
Electrical Requirements
-
Voltage: 230 V
-
Frequency: 50 Hz
-
Phase: Single Phase
-
Current: 6.1 – 10 A
-
Energy Consumption: Approximately 11.9 kWh/day
Construction
-
Exterior Material: Powder-coated steel
-
Interior Material: Painted steel / stainless interior panels
-
Insulation: Vacuum Insulation Panels (VIP) with polyurethane foam
Door Configuration
-
Outer Door: Single main insulated door
-
Inner Doors: 4 internal insulated doors to reduce temperature loss
Display & Monitoring
-
Display: 5.6-inch H-Drive Information Center (HIC)
-
Control Interface: Capacitive touch controls
-
Monitoring Interfaces:
-
4–20 mA output
-
RS485 communication
-
Dry contact alarm output
-
-
Compatible Monitoring System: Smart-Vue remote monitoring
Certifications
-
CE Certified
-
UL / cUL Listed
-
ISO 13485 compliant
